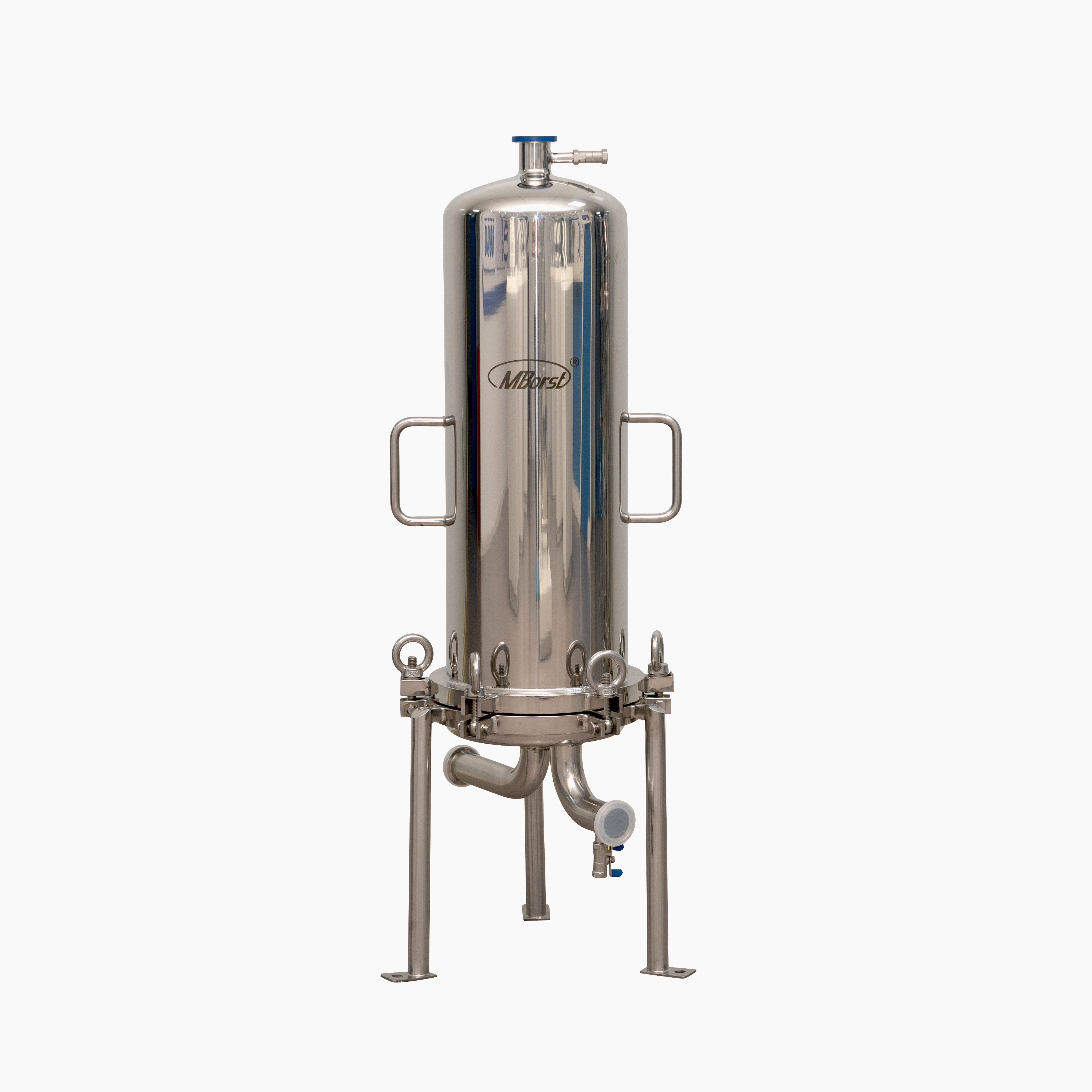

LF Sanitary Liquid Filter Housing

LF Sanitary filter housing are strongly recommended for life science filtration applications, it meets sanitary requirements
and GMP standards.
Single-round and multi-round design for liquid filtration with varying flow rates.

Feature:
  • Ensures easy cleaning and thorough drainage with no liquid retention

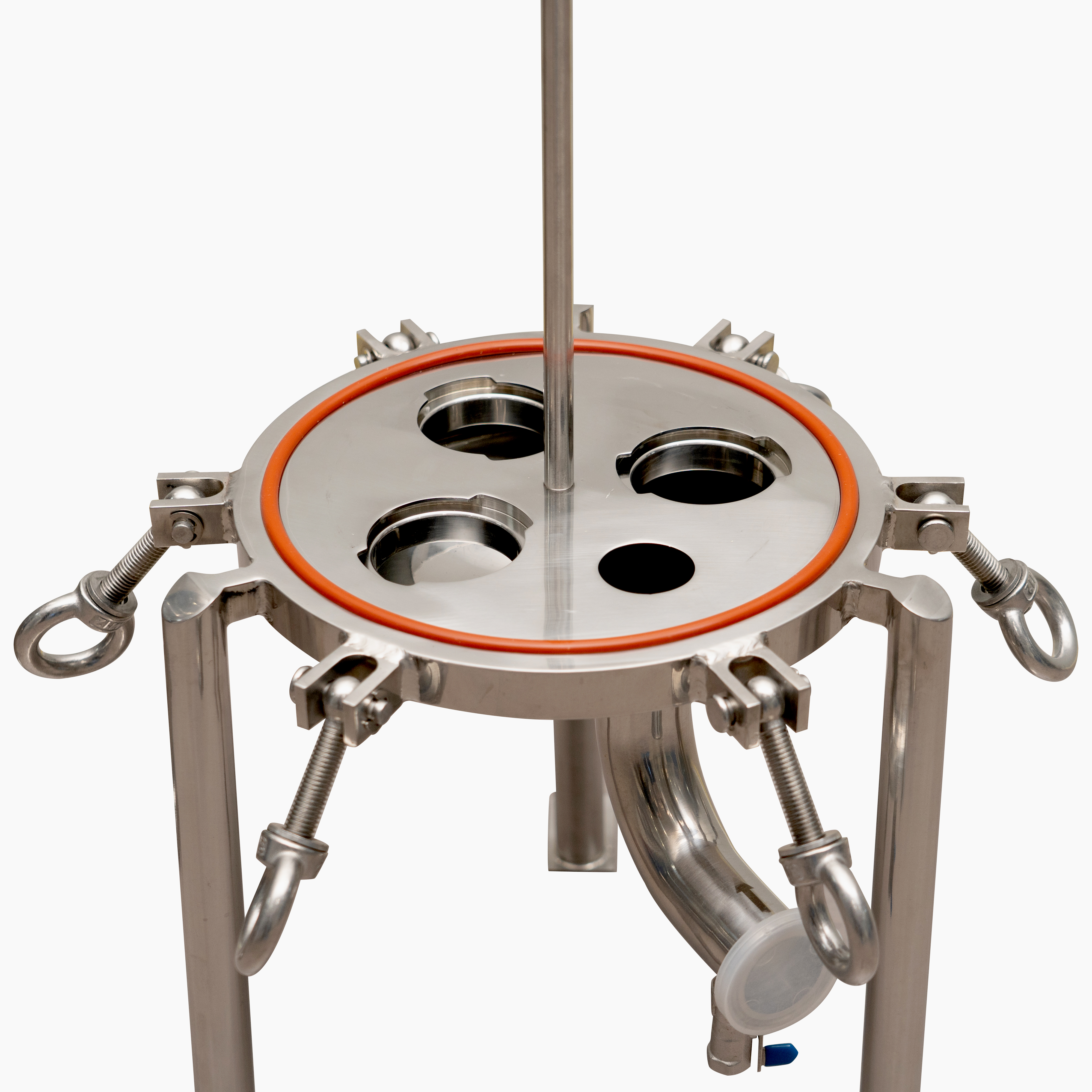

  • Optional detachable plate design for rigorous cleaning protocols

Applications:
  • Mainly used in biotechnology, medical field
  • Food and beverage
  • Electronic industry, pharmaceutical and other laboratory filtration
  • Chemical industry fluid filtration
Availability:
Quantity:
Inquire Add to Basket

  • LF-H

Polishing type

Mirror Polish/Internal Electro-polished

Polishing precision

Interior 0.3μm/Exterior 0.4μm

Sterilization

SIP 121℃/30min

Max. Working Pressure

0.6Mpa (6bar)/1.0Mpa (10bar)

Max. Operating Temperature

135°C/Design temperature 140°C



LF-H0540JLTTYES

Model

Elements

Length

Cartridge End Cap

Material

Body Connection

Inlet/Outlet

Pressure

Surface

Seal

LF-H

01=1R

03=3R

05=5R

07=7R

09=9R

12=12R

05=5"

10=10"

20=20"

30=30"

40=40"

J=226

F=222

D=DOE



S=304

L=316L

T=Tri-clamp

D=Swing Bolt

T=Tri-clamp



X=0.6

Y=1.0


M=Mirror polishing

E=Internal Electro-polished

S=Silicone

E=EPDM

V=Viton

P=PTFE+EPDM





卫生级多芯液体图纸


Multi-round Liquid Filter Housing Sanitary 304/316L
