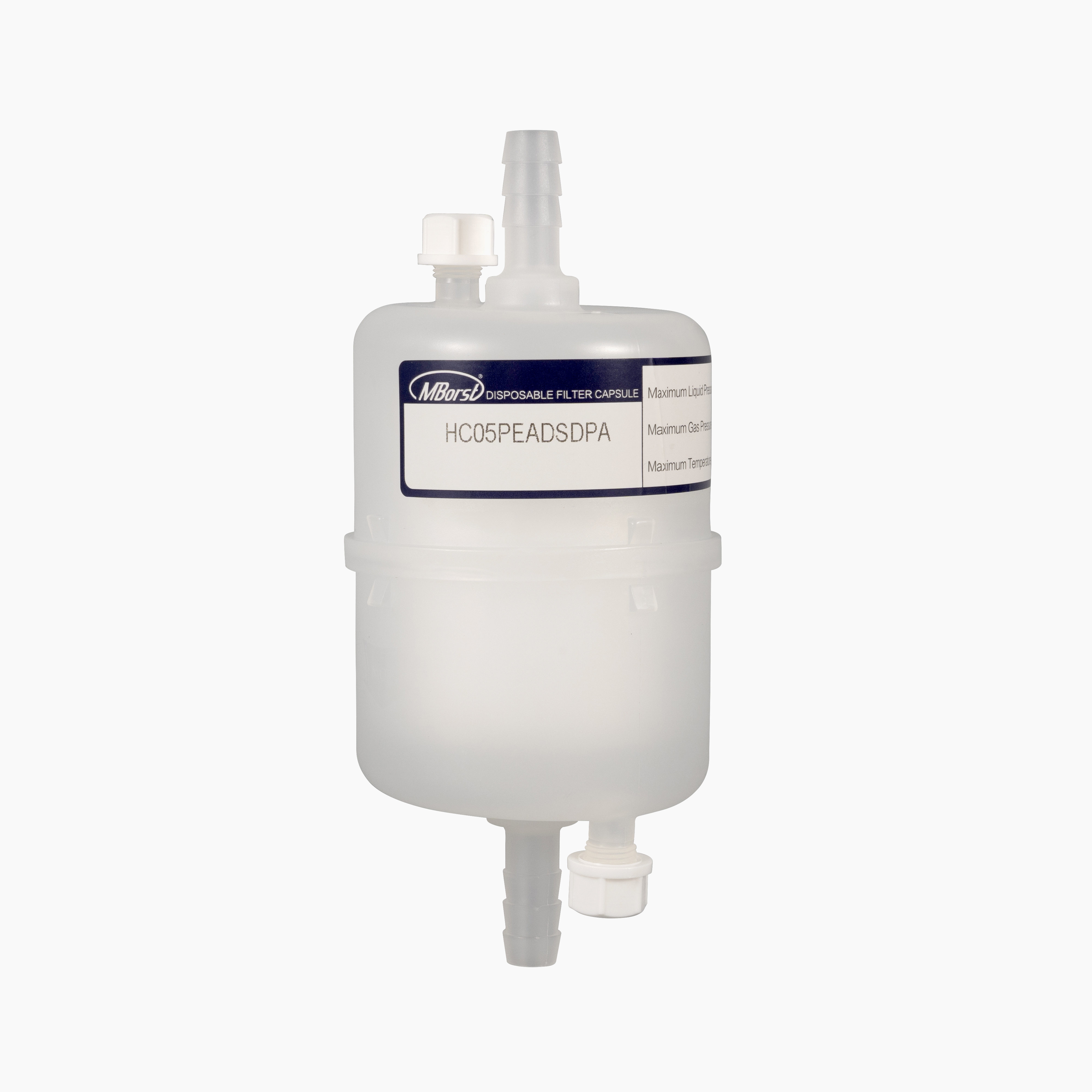

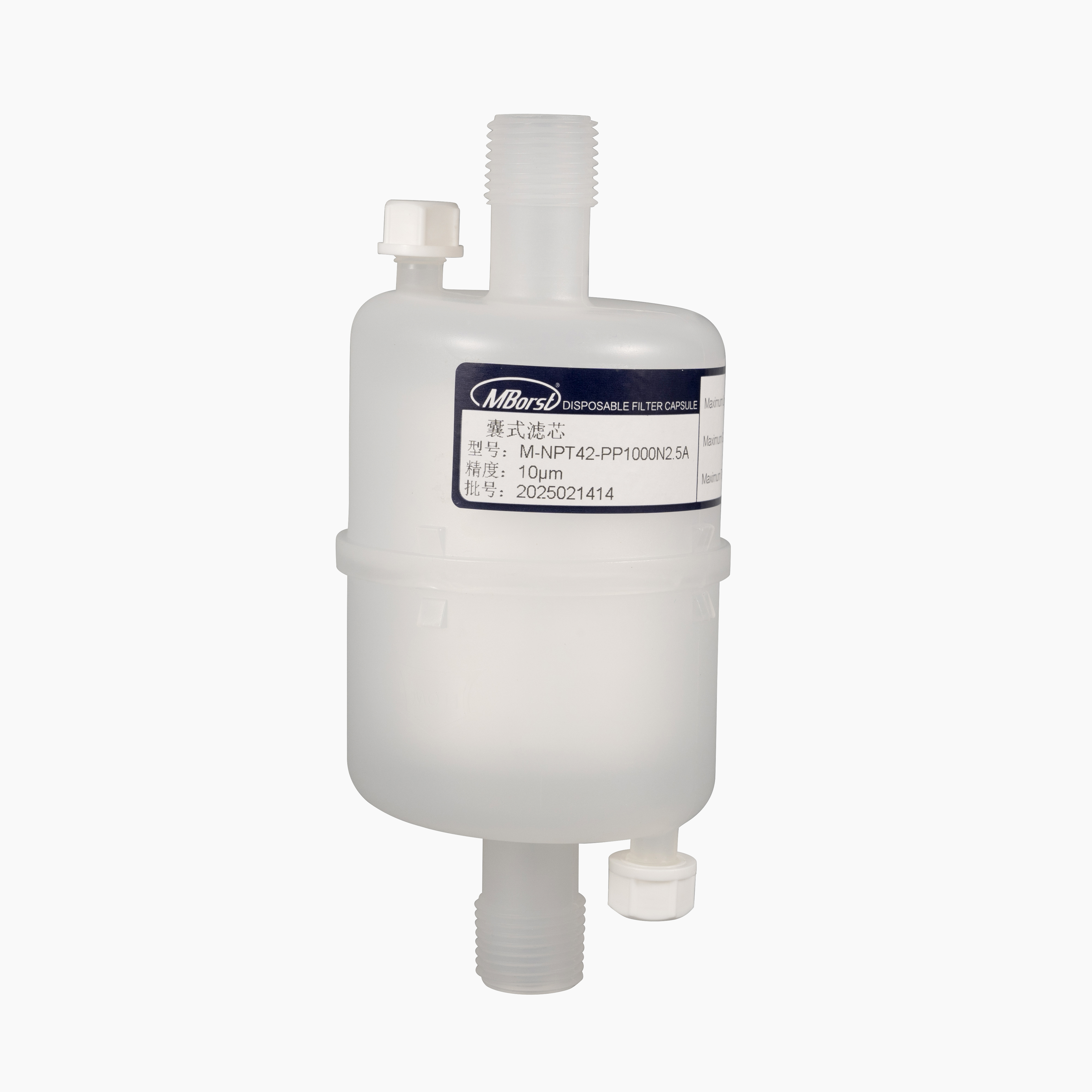

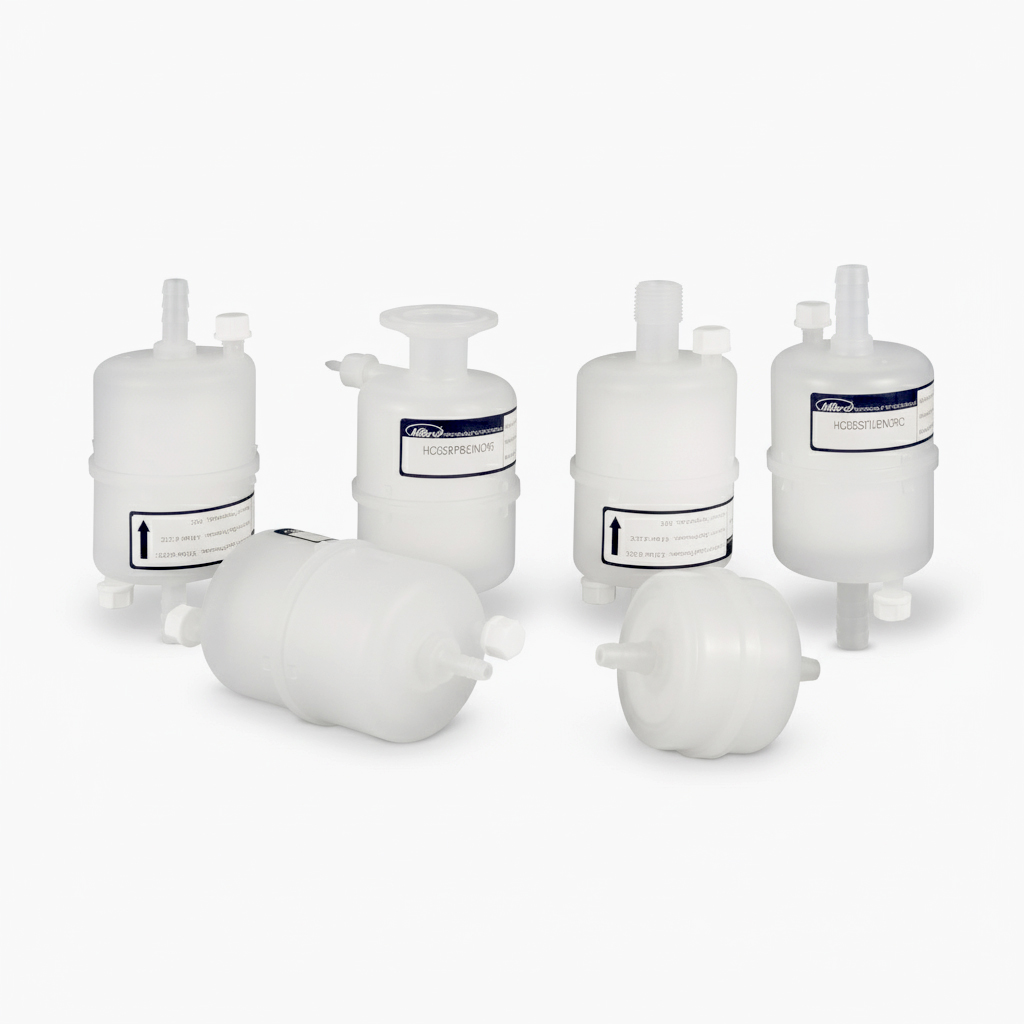

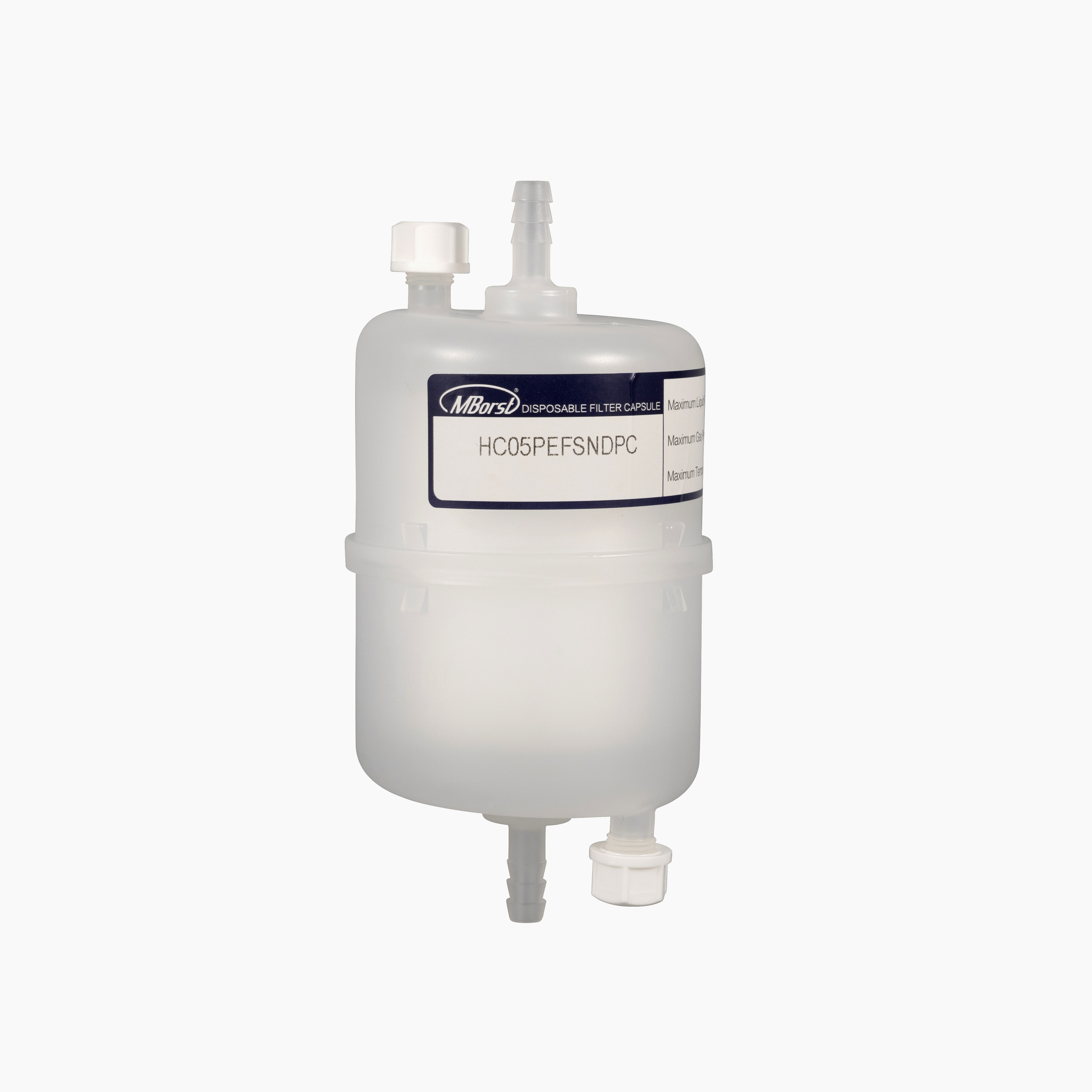

M-N/S Disposable Small Size Capsule Filter Cartridge


M-N/S perfectly combine filter element and filter, can be used directly.It is especially suitable for the environment with limited space and small batch production in the laboratory.

Features
  • Interface, membrane, size are optional, wide range of use.
  • The disposable integrated structure combined with the corresponding interface makes the installation and use more convenient.
  • One-piece structure, conventional NPT series, SW series, butterfly series, etc., compact design, small footprint, suitable for occasions with limited space.

Application
  • Pharmaceutical industry
  • Chemical
  • Biothechnology
  • Electronics
  • Cosmetics
  • Food & Beverage
  • Ink
Availability:
Quantity:
Inquire Add to Basket


Filter Media

PP/PES/PVDF/PTFE/NL/GF

Cage/Core/End Cap

PP

Max. Operating Temperature

50℃

Max. Operating Pressure Difference

4bar/21℃

2.4bar/80℃



M-N

Diameter

Length

Inlet/Outlet

Vent/Drain

M-NPT

M-NPT342

M-NPT42

M-NPT742

M-NPT942

M-NPT82

Φ72mm

Φ72mm

Φ72mm

Φ72mm

Φ72mm

82mm

114.5mm

165mm

216mm

131mm

1/4”NPT

1/4”NPT

1/4”NPT

1/4”NPT

1/2”NPT

1/8”NPT

1/8”NPT

1/8”NPT

1/8”NPT

1/8”NPT


M-S

Diameter

Length

Inlet/Outlet

Vent/Drain

M-SW344

M-SW44

M-SW744

M-SW944

Φ70mm

Φ70mm

Φ70mm

Φ70mm

Φ70mm

86mm

119mm

174mm

218mm

1/4”Swage

1/4”Swage

1/4”Swage

1/4”Swage

1/4”Swage

1/4”Swage

1/4”Swage

1/4”Swage

囊式示意图

囊式接口


M-N/S Disposable Small Size Capsule Filter Cartridge
