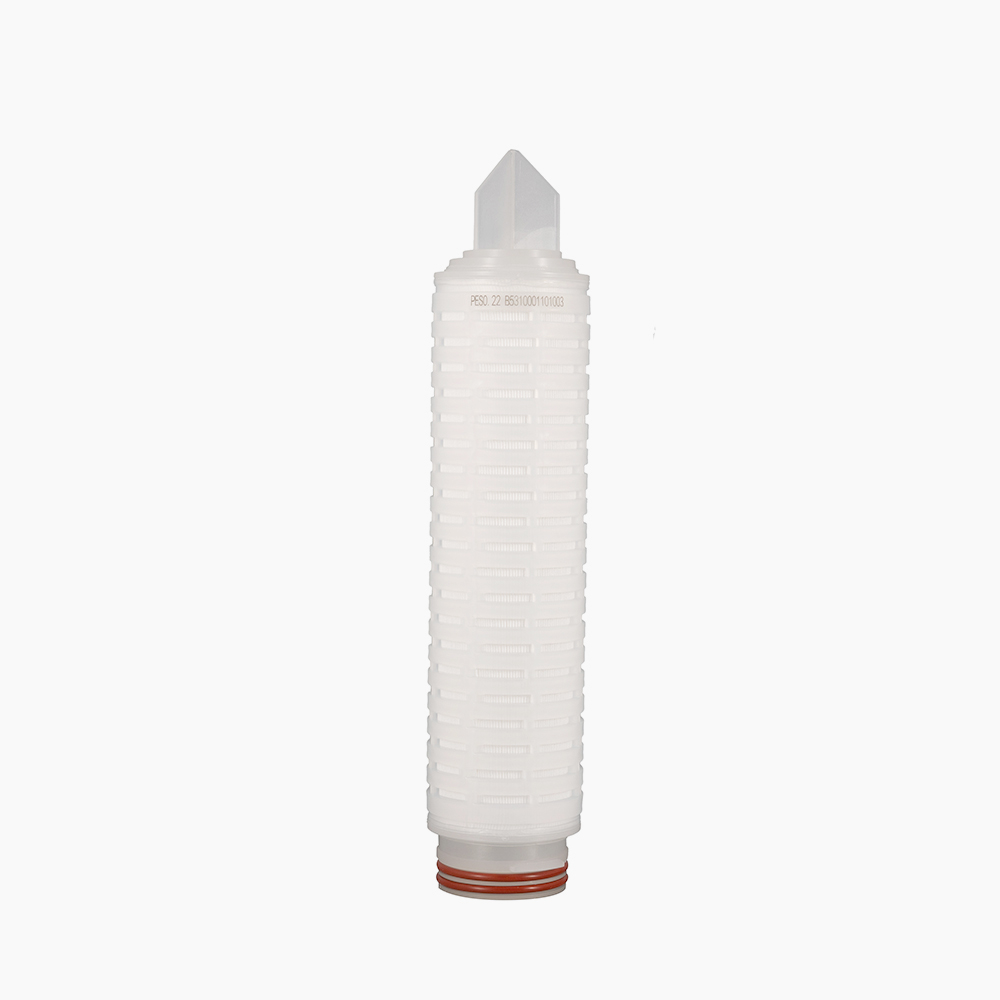

PEF Series Prefiltration PES Filter Cartridge


Mborst PEF Series cartridges are constructed of high flux hydrophilic PES membrane. Resistant to repeated steam sterilization.
100% integrity tested before shipment to guarantee high quality while providing different end cap types and length to meet variety applications.

Features
  • Double Layers design, reliable sterilization effect
  • Low protein binding
  • High flow rate, long service life
  • 100% integrity tested

Application
  • Biological product
  • Intermediate product
  • Pharmaceutical formulation
  • Culture medium/Buffer prefiltration

Bio-safety
  • Endotoxin:<0.25 EU/ml (Meet the requirement of USP<87>test; component materials meet thecriteria of the USP <88> for Class Vlplastics)
  • Extractables: ≤50mg/m2
Availability:
Quantity:
Inquire Add to Basket

  • PEF

Filter Media

Hydrophilic PES

Cage/Core/End Cap

PP

Max. Operating Temperature

90℃

Max. Operating Pressure Difference

Forward: 5.5bar@25℃

Reverse: 2bar@25℃



F

10

S

E

F

D

G

H6S

S

P

Model

Length

Membrane Type

Membrane

Feature

Removal Rating

Prefilter Layer

End Cap Type

Seal Material

Application

F=Pleated

05=5"

10=10"

20=20"

30=30"

40=40"

P=PrefiltrationE=PESF=High Flux

D=0.45μm E=0.65μm

G=1.0μm

K=3.0μm

R=5.0μm

T=10μm

F=0.8μm

G=1.0μm

L=1.5um

N=None

DOE=Double Open End

H2S=222/Fin(PTB Insert)

H6S=226/Fin (PTB Insert)

H2P=222/Flat (PTB Insert)

H6P=226/Flat (PTB Insert)


E=EPDM

S=Silicone

F=Viton

T=PTFE

K=MFK


M=Medical

P=Phammaceutical

F=Food

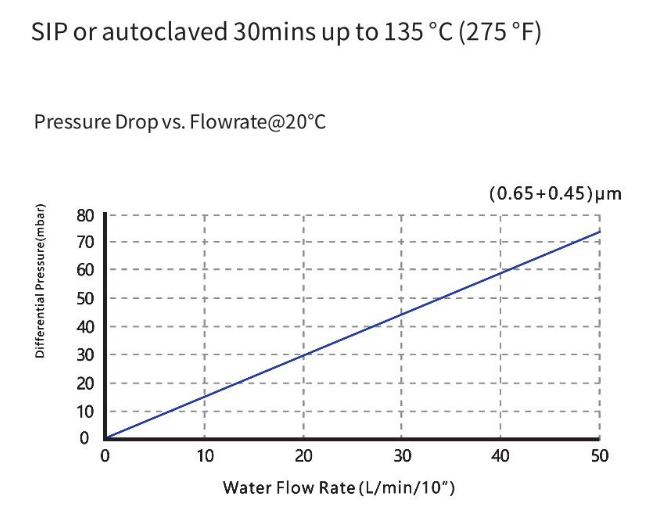

PEF流量


PES Pleated Filter Cartridge Pleated Filter Cartridge Prefiltration
