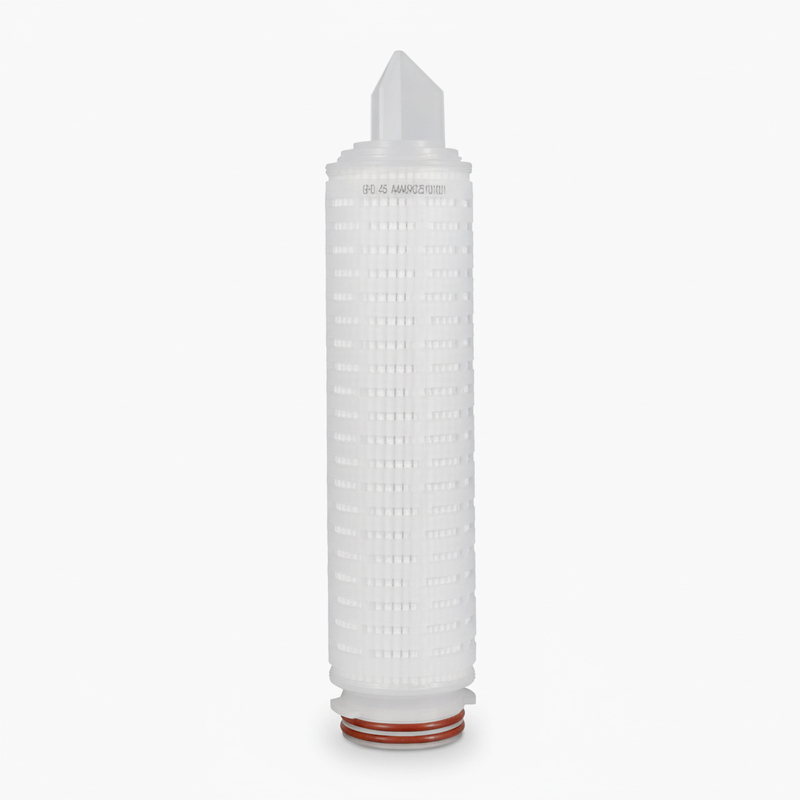

RGE Series Prefiltration Glass Fiber Filter Cartridge


MBorst RGE Series filter cartridge is made of ultra-fine glass fiber membrane with high flux, high dirt holding capacity and high retention efficiency to effectively protect the final filter cartridge in pharmaceutical system.
It is suitable for the filtration of liquid with colloids, grease, and high particles content, such as vaccine, bacterial culture medium, etc.

Features
  • Suitable for highly viscous liquid
  • High dirt holding capacity
  • Excellent retention capacity
  • Economical and efficient

Application
  • Fermentation/Culture medium
  • Serum/Plasma
  • Vaccine prefiltration and clarification
  • Colloid/Viscous liquid

Bio-safety
  • Endotoxin:<0.25 EU/ml (Meet the requirement of USP<87>test; component materials meet thecriteria of the USP <88> for Class Vlplastics)
  • Extractables: ≤50mg/m2
Availability:
Quantity:
Inquire Add to Basket

  • RGE


Filter Media

Ultra-fine glass fiber

Cage/Core/End Cap

PP

Max. Operating Temperature

80℃

Max. Operating Pressure Difference

Forward: 5.5bar@25℃

Reverse: 2bar@25℃



F10RGESAH6SSP

Model

Length

Membrane Type

Membrane

Feature

Removal Rating

Prefilter Layer

End Cap Type

Seal

Application

F=Pleated


05=5"

10=10"

20=20"

30=30"

40=40"

R=RelativeG=GlassfiberE=High Retention

M=0.1μm

S=0.2μm

C=0.5μm

G=1.0μm

K=3.0μm

R=5.0μm

T=10μm

U=20μm

W=50μm


A=Multi-layer

N=None


DOE=Double Open End

H2S=222/Fin(PTB Insert)

H6S=226/Fin (PTB Insert)

H2P=222/Flat (PTB Insert)

H6P=226/Flat (PTB Insert)

B2S=222/Fin(SS Insert)

B6S=226/Fin (SS Insert)

B2P=222/Flat (SS Insert)

B6P=226/Flat (SS Insert)



E=EPDM

S=Silicone

F=Viton

T=PTFE

K=MFK


M=Medical

P=Phammaceutical

F=Food

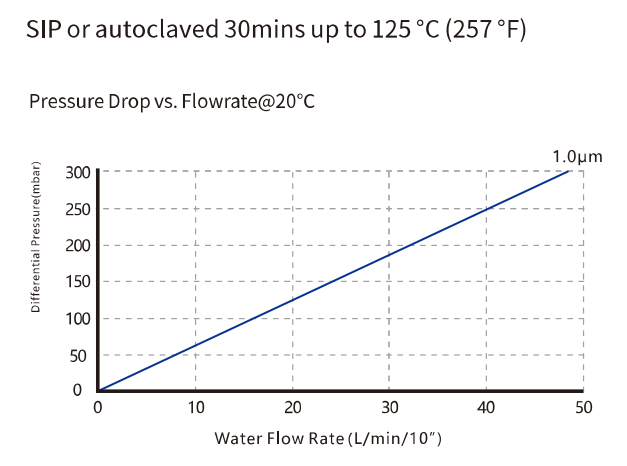

RGE流量
