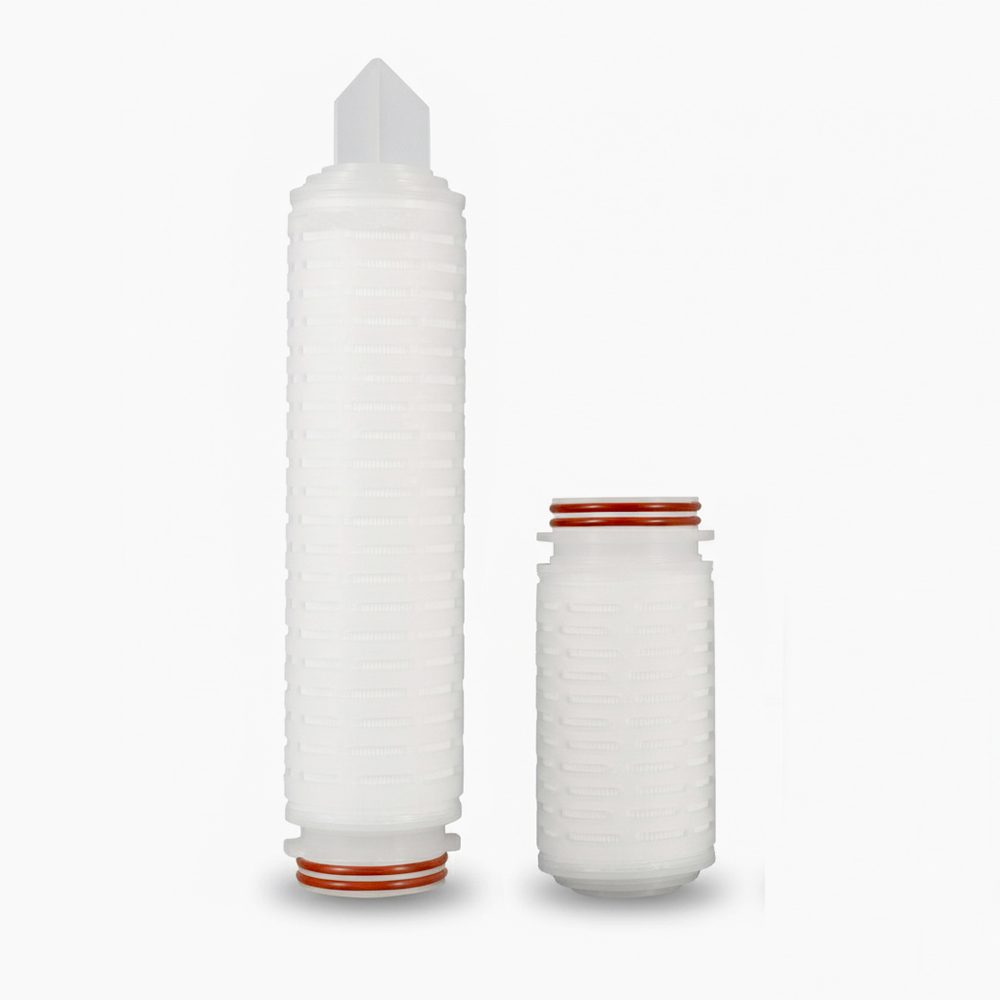

SVS Series Sterilization PVDF Filter Cartridge


MBorst SVS Series filter cartridges are madeof hydrophilic PVDF membrane. Low proteinadsorption ensures high product recovery rate.It has a wide range of applications, especiallyin filtration processes for vaccine, bloodproducts and proteins.

Features
  • Low adsorption
  • High flux, long service life
  • Reliable retention capability
  • 100% integrity tested (Bacterial retention in accordancewith ASTM F838 DefectivePseudomonas 107CFU/cm2)

Application
  • Antibodies/Recombinant Proteins
  • Culture medium
  • Vaccine/Serum
  • Antibiotic solution
  • Other sterile preparations

Bio-safety
  • Endotoxin:<0.25 EU/ml (Meet the requirement of USP<87>test; component materials meet thecriteria of the USP <88> for Class Vlplastics)
  • Extractables: ≤50mg/m2
Availability:
Quantity:
Inquire Add to Basket

  • SVS


Filter Media

Hydrophilic PVDF

Cage/Core/End Cap

PP

Max. Operating Temperature

85℃

Max. Operating Pressure Difference

Forward: 5.5bar@25℃

Reverse: 2bar@25℃



F10SVSSSH2SSP

Model

Length

Membrane Type

Membrane

Feature

Removal Rating

Prefilter Layer

End Cap Type

Seal Material

Application

F=Pleated


05=5"

10=10"

20=20"

30=30"

40=40"

S=SterilizationV=PVDFS=Standard

S=0.22μm

S=0.22μm D=0.45μm E=0.65μm

N=None

DOE=Double Open End

H2S=222/Fin(PTB Insert)

H6S=226/Fin (PTB Insert)

H2P=222/Flat (PTB Insert)

H6P=226/Flat (PTB Insert)


E=EPDM

S=Silicone

F=Viton

T=PTFE

K=MFK


M=Medical

P=Phammaceutical

F=Food

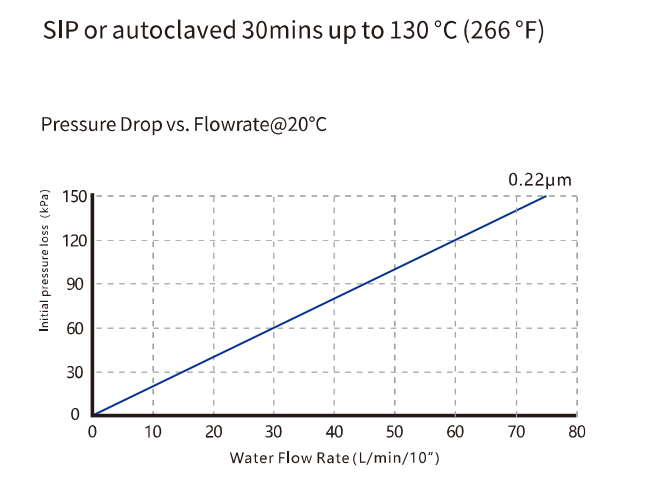

SVS流量
