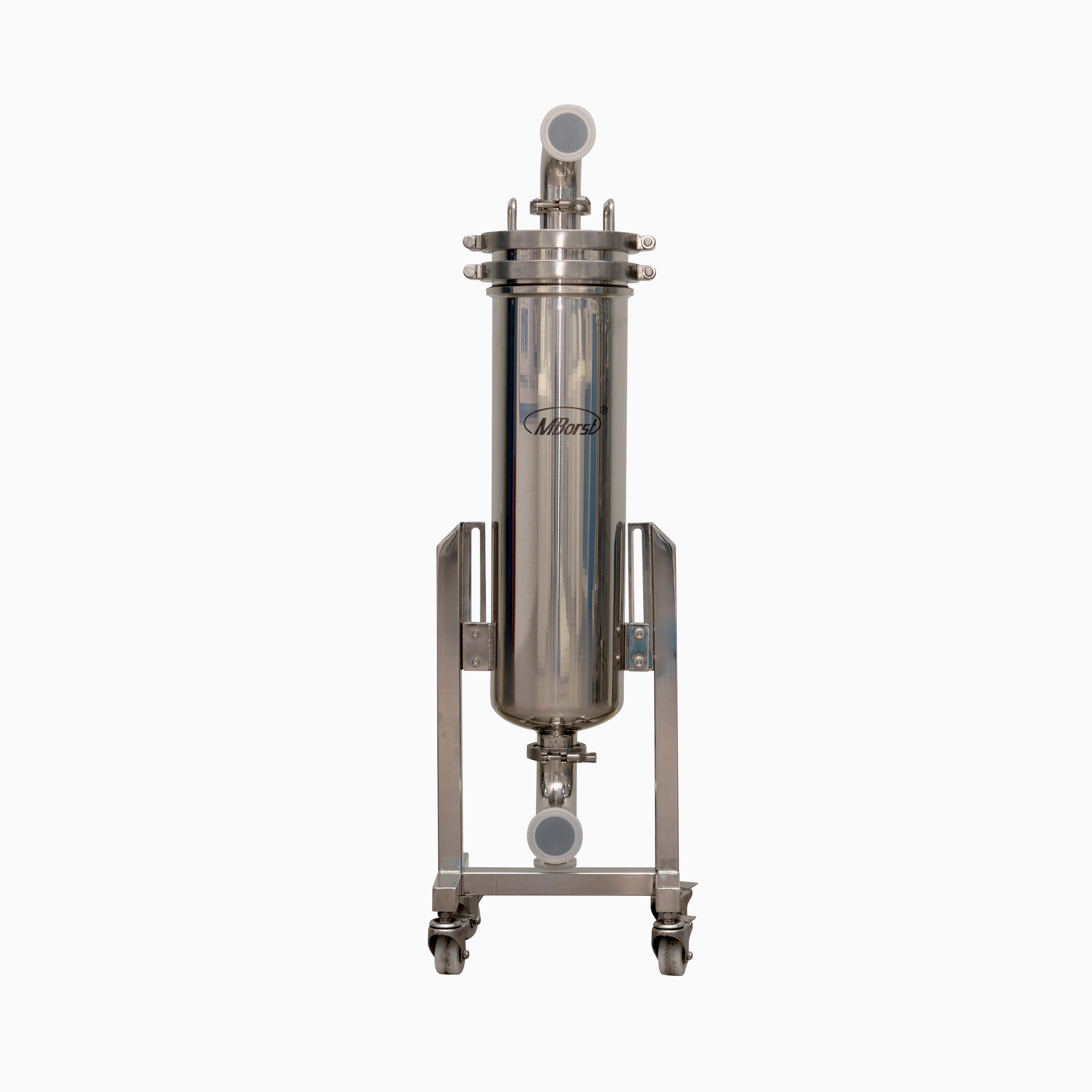

Single Bag Filter Housing

MBorst bag filter housings are offered in various sizes and port options for different filtration requirements in coarse filtration and
pre-filtration.
The single bag type has top-inlet design and side-inlet design. With a top-inlet design, liquid flows into the filter housing from the side inlet to the top of the filter, which automatically establish a pressure balance and reduction and free from turbulence, thus, effectively protect the filter bag. Side-inlet
design is simple, space-efficient, and economical.
The stainless steel grid mesh inside plays a supporting role, made of excellent material, and the precision can be customized.
Multi-bag type is suitable for high flow occasions. Due to its large volume, it generally utilizes a davit design, with mechanical opening, which is convenient for disassembly and maintenance.

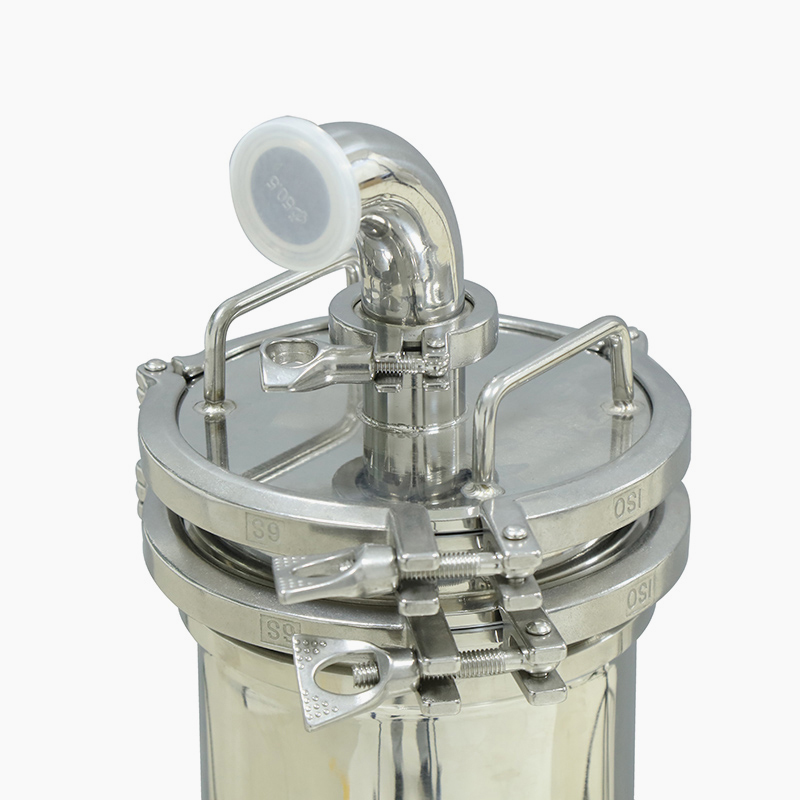

The filter bag adopts a three-point pressure ring seal which creates a tight seal.
Availability:
Quantity:
  • DS

Polishing type

Mirror Polish/Internal Electro-polished

Polishing precision

Interior 0.3μm/Exterior 0.4μm

Max. Working Pressure

0.6Mpa (6bar)/1.0Mpa (10bar)

Max. Operating Temperature

135°C/Design temperature 140°C




DS012SSTTXES

Model

Elements

Length

Material

Body Connection

Inlet/Outlet

Pressure

Surface

Seal

DS

01=1P

03=3P

05=5P

07=7R 09=9P 12=12P

1S=1# bag

2S=2# bag



S=304

L=316L

T=Screwed Connection

D=Swing Bolt


T=Tri-clamp





X=0.6

Y=1.0

M=Mirror polishing

E=External Sand Blasted

S=Silicone

E=EPDM

V=Viton

P=PTFE+EPDM





袋式图纸
