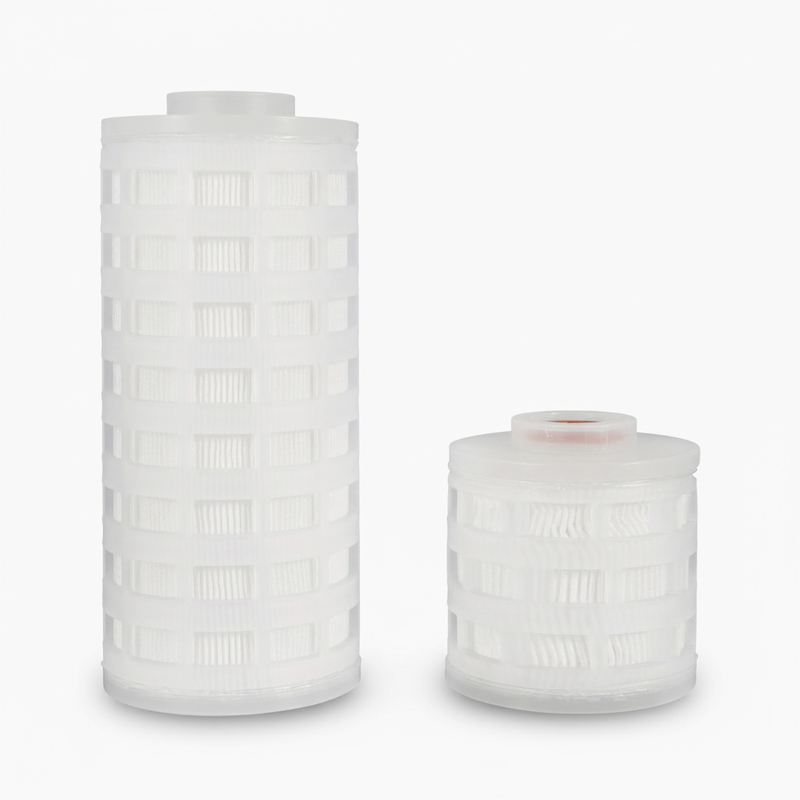

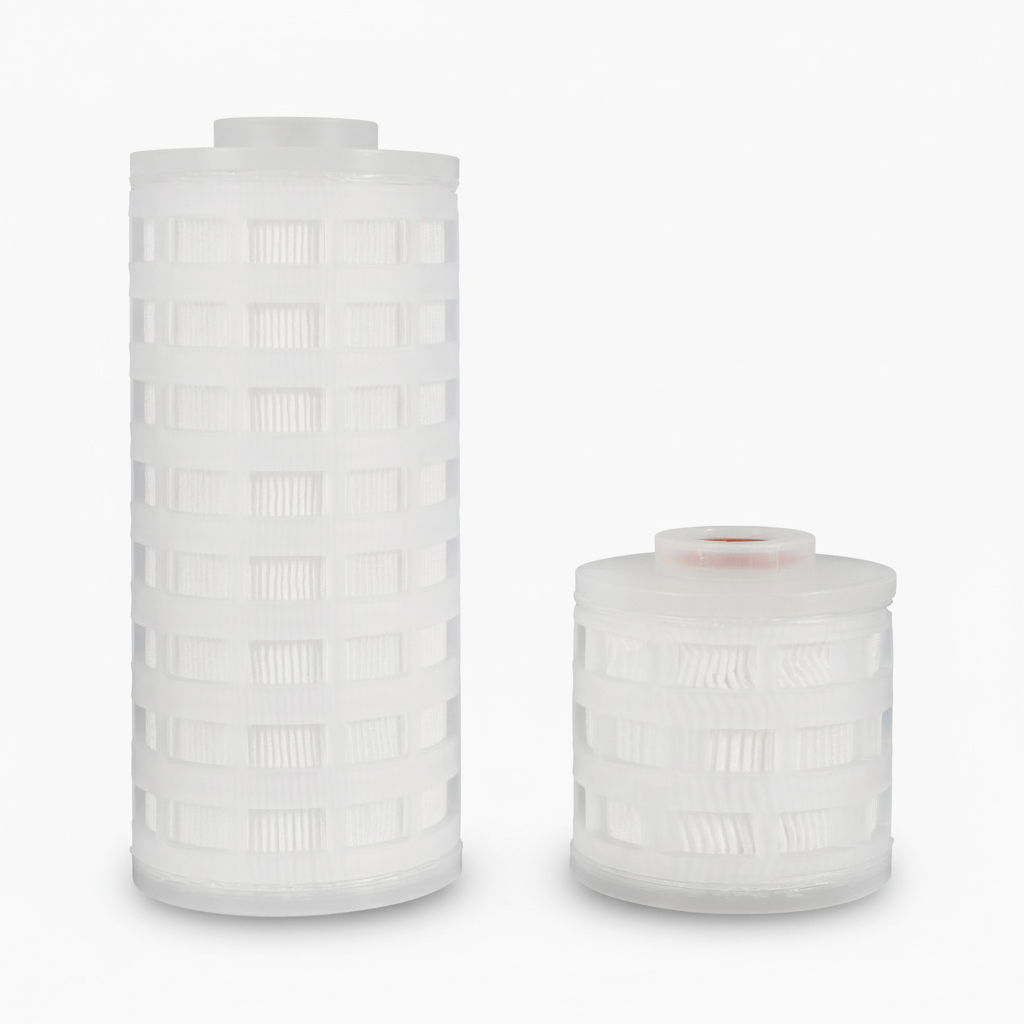

X Series Mini Pleated Filter Cartridge


Mborst X series mini cartridge filter is a high precision filtration product for small volume air and liquid. It is made of polypropylene material with good filtration performance and chemical compatibility. Compact construction minimizes residual loss to greatest level. O-ring snap ensures strict sealing, easy for operation and cleaning, and effectively prevents bacteria and particles penetration.

Features
  • Designed for small volume air and liquid filtration
  • Good filtration performace and chemical compatibility
  • O-ring snap ensure strict sealing to effectively prevent bacteria and particles penetration

Availability:
Quantity:
Inquire Add to Basket

  • X56


Filter Media

PP/PES/PVDF/PTFE/NL/GF

Cage/Core/End Cap

PP

Diameter

56mm

Length

2.5" (59.5mm)

5" (132.5mm)


X

56

B

S

P

G

D

S

F

A

S

Model

Diameter

Length

Membrane Type

Membrane

Cartridge Type

Removal Rating 1

Removal Rating 2

Application

Sterilization Method

Seal Material

X=Mini


56=ф56mm

A=59.5mm

B=132.5mm

S=Sterilization

P=Prefiltration

R=Relative Membrane


P=PP

E=PES

T=PTEE

V=PVDF

N=Nyon

G=GF

S=Standard

A=Asymmetric

F=High Flux

L=Liquid       (Hydrophobic)

G=Gas  (Hydrophobic)

D=0.45μm E=0.65μm

F=0.8μm

G=1.0μm

H=1.2μm

M=0.1μm

S=0.22μm

N=None


P=Phammaceutical

F=Food

N=Standard


A=Autoclavable


E=EPDM

S=Silicone

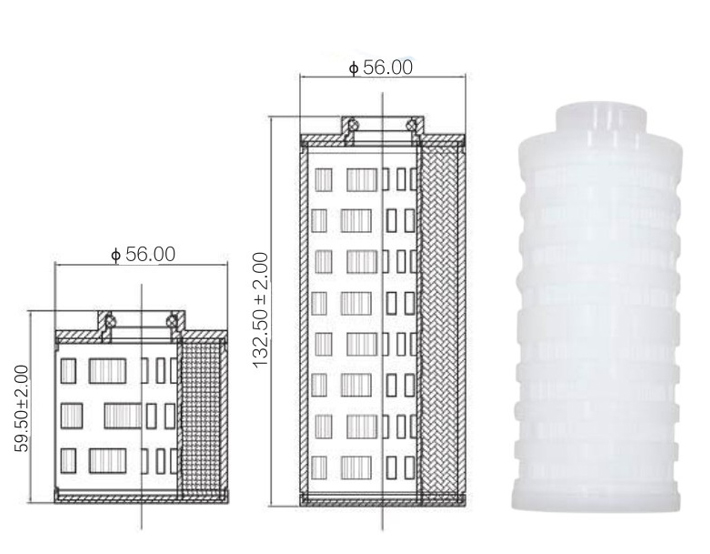

X56尺寸

Mini Filter Cartridge Pleated Filter Cartridge Small Size Filter Cartridge
