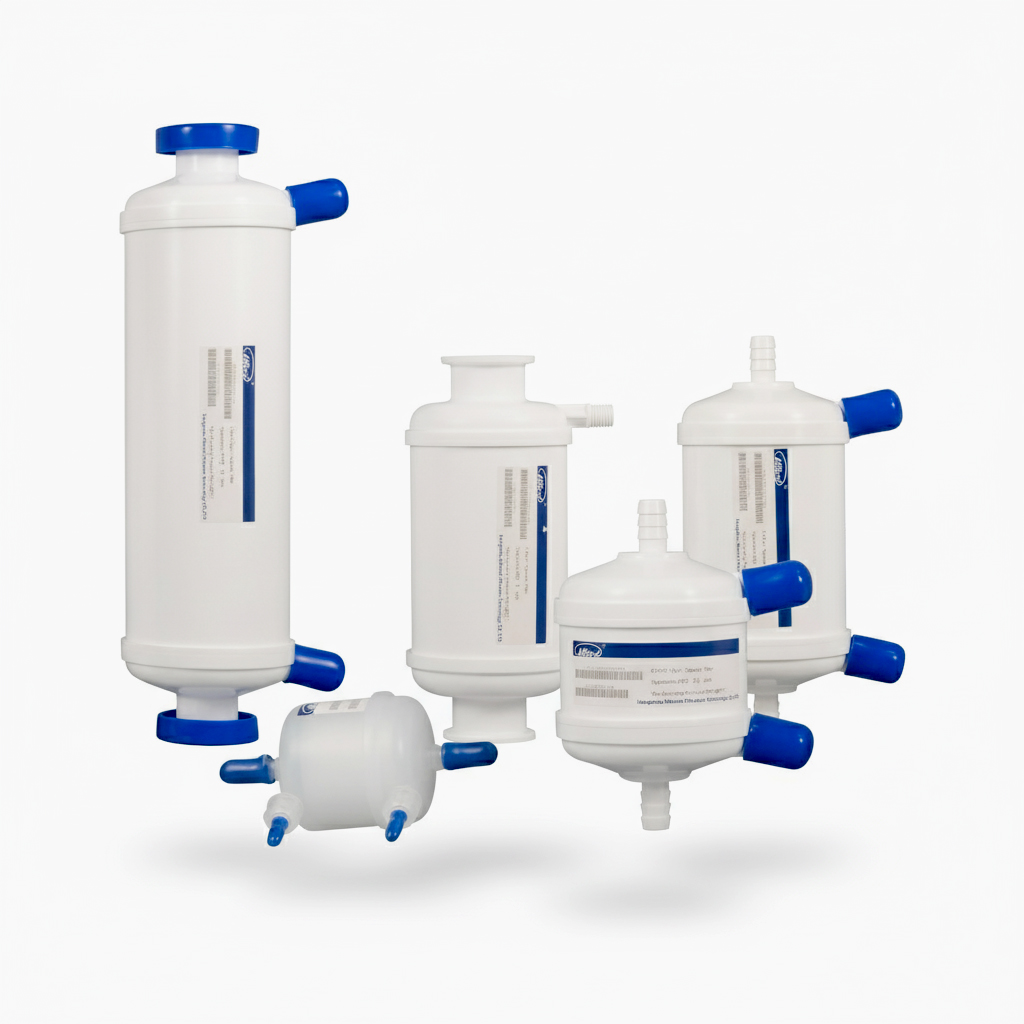

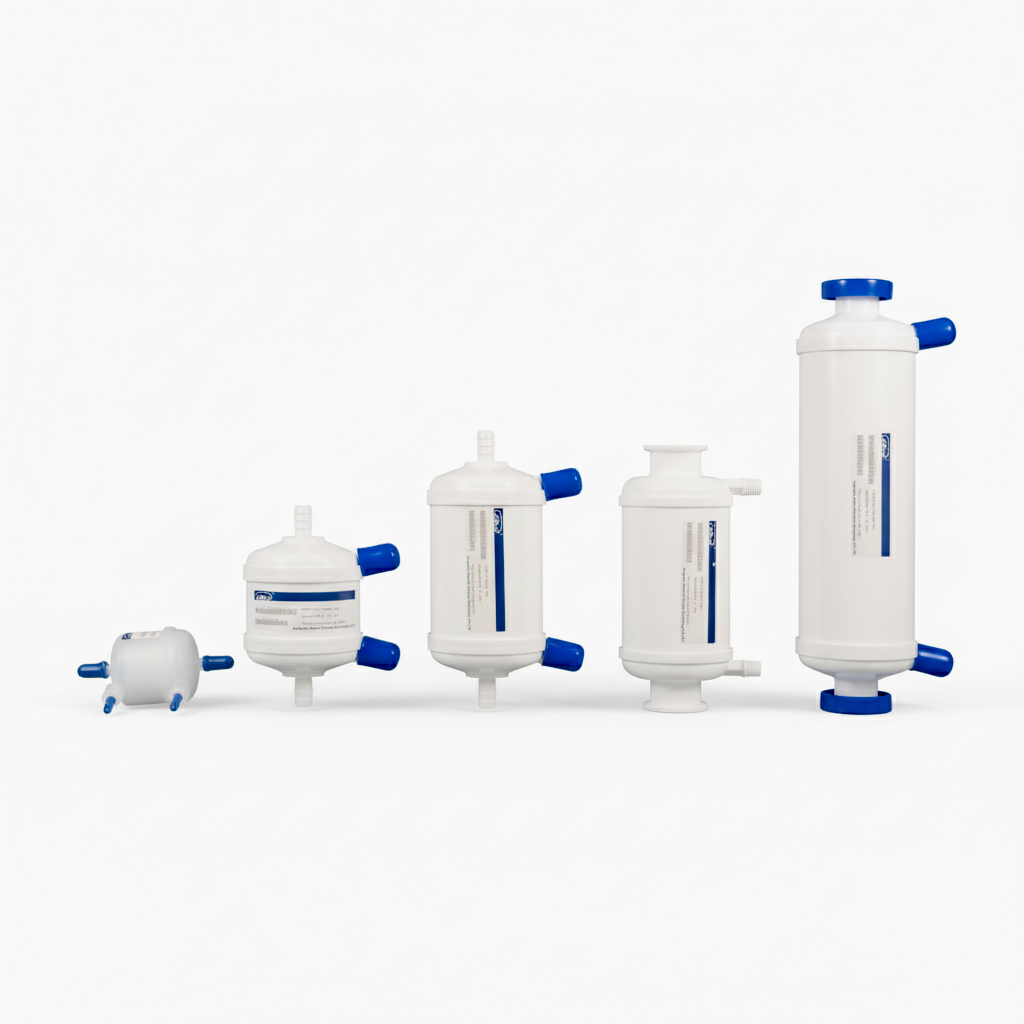

H Series Disposable Capsule Filters

Mborst disposable capsule filters are high-efficiency products designed for the filtration needs in various bioprocesses. Different sizes options to meet the needs from small-scale experiments to large-scale production. Filtersuses sterilizing grade hydrophilic membrane which has strong compatibility and can deal with liquid filtration inpH1-14.

Features

Dual membrane filtration system of diatomaceous earth andcellulose with excelent dirt holding capacity
Combined mechanicalinterception and electrostatic adsorption technologies to enhance impurity removal efficiency
Various specifications to meet all your requirements

Features

Clarification of fermentation broth/cell culture medium
Blood products
Buffer filtration
Chemical purification and decarbonization filtration
Particle removal of intermediates products
Colloids

Availability:

Quantity:



Inquire Add to Basket

Model:
H

Nominal Size (Inch)		1"	2.5"	5"	10"
Effective Filtration Area(m²)	Single Layer	380cm²	0.16m²	0.33m²	0.65m²
Effective Filtration Area(m²)	Double Layers	300cm²	0.14m²	0.28m²	0.55m²
Membrane		PTFE、PES
Removal Ratings	PTFE	0.22μm
Removal Ratings	PES	0.22μm、0.45μm
Max. Differential Pressure	Forward:5.5bar(80psi) @25°C 1.7bar (25psi) @80°C Reverse:2.1bar(30psi) @25°C
Inlet/Outlet		1/2-1/4" Hose Barb	TC25/TC501/2" Hose Barb/5/8" Hose BarbTC25 Inlet & 1/2" Hose Barb OutletTC50 Inlet & 5/8"Hose Barb Outlet		TC50 5/8" Hose Barb
Sterilization	A: Autoclaved for 3 cycles of 60min at 126°C B: Gamma-irradiation compatible to 40KGy- (Cannot be autoclaved)

Mini Filter Cartridge Capsule Filters Disposable Filter

H	C	05	S	E	G
Model	Model2	Length	Membrane Type	Membrane	Cartridge Type
H=Sandard	C=Top-in&Bottom-out(Small Diameter) L=Top-in & Bottom-out (Large Diameter) T=Leftin & Right-out (Large Diameter	01=1" 025=2,5" 05-05" 10=10'	S=Sterilization P=Prefiltration/Redundant R=Relative Membrane	E=PES T=PTFE	S=Standard A=Asymmetric F=High Flux L=Liquid (Hydrophobic) G=Gas (Hydrophobic)
S	S	B	P	A
Removal Rating 1	Removal Rating 2	Inlet/Outlet	Application	Sterilization Method
S=0.22μm D=0.45μm E=0.65μm F=0.8μm G=1.0μm H=1.2μm	M=0.1μm S=0.22μm N=None	A=TC25 B=TC50 C=1/2" Hose Barb D=5/8" Hose Barb E=1/2"-1/4" Hose Barb	M=Medical P=Phammaceutical F=Food	A=Autoclavable B=Gamma-irradiation Compatible C-Sterile

H	C	05	S	E	G
Model	Model2	Length	Membrane Type	Membrane	Cartridge Type
H=Sandard	C=Top-in&Bottom-out(Small Diameter) L=Top-in & Bottom-out (Large Diameter) T=Leftin & Right-out (Large Diameter	01=1" 025=2,5" 05-05" 10=10'	S=Sterilization P=Prefiltration/Redundant R=Relative Membrane	E=PES T=PTFE	S=Standard A=Asymmetric F=High Flux L=Liquid (Hydrophobic) G=Gas (Hydrophobic)
S	S	B	P	A
Removal Rating 1	Removal Rating 2	Inlet/Outlet	Application	Sterilization Method
S=0.22μm D=0.45μm E=0.65μm F=0.8μm G=1.0μm H=1.2μm	M=0.1μm S=0.22μm N=None	A=TC25 B=TC50 C=1/2" Hose Barb D=5/8" Hose Barb E=1/2"-1/4" Hose Barb	M=Medical P=Phammaceutical F=Food	A=Autoclavable B=Gamma-irradiation Compatible C-Sterile
