PVS Series Prefiltration PVDF Filter Cartridge


MBorst PVS Series filter cartridge is made of hydrophilic PVDF membrane, which has low protein binding and ensures high product recovery rate. It is used in a wide range of applications, especially in the prefiltration of vaccine, blood products and protein products.

Features
  • Low adsorption
  • High flux, long service life
  • Reliable retention capacity

Application
  • Biological reagents and blood
  • Culture medium prefiltration
  • Vaccine
  • Common sterile preparations

Bio-safety
  • Endotoxin:<0.25 EU/ml (Meet the requirement of USP<87>test; component materials meet thecriteria of the USP <88> for Class Vlplastics)
  • Extractables: ≤50mg/m2
Availability:
Quantity:
Inquire Add to Basket

  • PVS


Filter Media

Hydrophilic PVDF

Cage/Core/End Cap

PP

Max. Operating Temperature

85℃

Max. Operating Pressure Difference

Forward: 5.5bar@25℃

Reverse: 2bar@25℃



F10PVSSSH2SSP

Model

Length

Membrane Type

Membrane

Feature

Removal Rating

Prefilter Layer

End Cap Type

Seal Material

Application

F=Pleated


05=5"

10=10"

20=20"

30=30"

40=40"

P=PrefiltrationV=PVDFS=Standard

D=0.45μm E=0.65μm

G=1.0μm

K=3.0μm

R=5μm

T=10μm


F=0.8μm G=1.0μm L=1.5μm

N=None

DOE=Double Open End

H2S=222/Fin(PTB Insert)

H6S=226/Fin (PTB Insert)

H2P=222/Flat (PTB Insert)

H6P=226/Flat (PTB Insert)

B2S=222/Fin(SS Insert)

B6S=226/Fin (SS Insert)

B2P=222/Flat (SS Insert)

B6P=226/Flat (SS Insert)



E=EPDM

S=Silicone

F=Viton

T=PTFE

K=MFK


M=Medical

P=Phammaceutical

F=Food

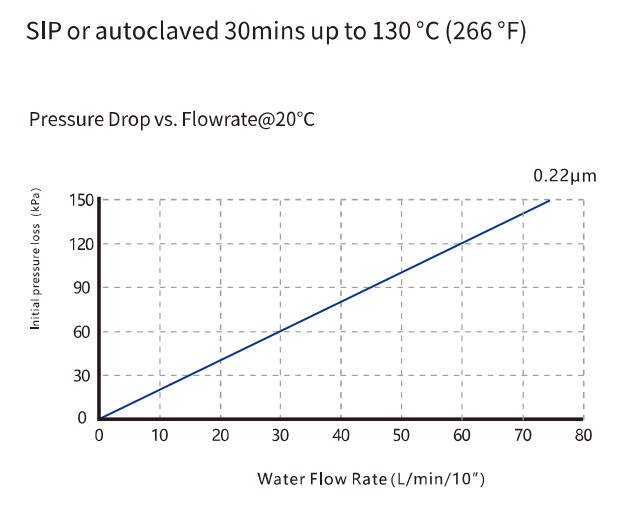

PVS流量
